MOPA3 Laser Marker - 100W - Class 4

The MOPA3 laser marker is Automator's high-power, high-precision system designed for extremely fast production lines that need sharp, deep marking. Thanks to MOPA technology, it combines crisp, durable marks with a flexibility that a traditional fiber laser can't offer.

ACHIEVE PERFECT BLACK WITH MAXIMUM PRECISION (ANNEALING)
PERFECT FOR MARKING UDI CODES - ZERO ROUGHNESS, UNIFORM MARKING
COLOR MARKING ON STEEL SURFACES

MOPA3 is a modular system that's extremely convenient to work with: the main unit houses the source and the logic board in two separate compartments, so dust entering through the cooling fans never reaches the electronics, which stay fully isolated. Galvanometers and lenses are housed in the head unit.

Fiber lasers like MOPA3 allow a significant increase in source power without affecting the size of the laser spot: the result is deep, precise marking even at high power levels, with high overall system efficiency.

Laser type: Nb:Yb 1064 nm

Power: 100 W

Safety class: 4

Want to get the basics of MOPA technology first? Read our guide to MOPA lasers for an overview of how it compares to a traditional fiber laser.

Where to use the MOPA3 laser marker: materials and applications

Here's what you can mark in production with MOPA3:

Material / Industry	What you get with MOPA3
Stainless steel (automotive, mechanical engineering)	Reproducible, high-contrast color marking for quick visual coding
Anodized aluminum (electronics, packaging)	Perfect, uniform black, without the imperfections typical of other technologies
Medical devices (biomedical)	Zero-roughness UDI codes, uniform marking that meets traceability requirements
Metal line components (manufacturing)	Data Matrix codes and serial numbers that stay readable even in dusty, vibration-heavy environments
Nameplates and technical components	Permanent, wear-resistant marking for long-term identification

Technical data

Size	Rack:500x465x180 mm - Testa: 445x145x165 mm
Weight	28 kg + 6 kg
Materials	Plastics Metals Ceramics Coatings and treatments

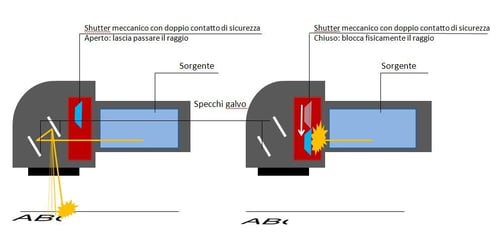

MOPA and safety: the mechanical shutter, because safety always comes first

Like all third-generation (Gen III) Automator lasers, MOPA3 also comes with a CE safety-certified dual-channel mechanical shutter, which lets the laser reach SIL3-PLE safety level, the highest safety rating available for this type of device.

The dual-contact safety shutter physically blocks the laser beam whenever the system detects a safety-related event, or whenever free access to the marking area inside an enclosure is needed. Low-cost lasers often don't meet this fundamental requirement and fall short of current safety regulations.

Software and technical data

MOPA3 is controlled by Automator's EuGENIUS™ software, versatile and easy to use even for operators without technical or CAD-specific training:

Multilingual menu
“DataMatrix” barcode management, 2D code, QR code, PDF code
Easy import of DXF vector drawings
Easy import of raster graphics, BMP, JPEG, .JPG, GIF
Complete set of laser parameters such as laser speed or power
Text, Arc text, text on curved lines
Line, rectangle, polygon, circle and arc
TTF Font® (windows property)
Graphic preview display Texts with date, serial numbers, shift codes and year/month/day
Markings with fill or outline only
Template (object to be marked as background)
Proportion scaling, movement, rotation, group creation of each object on screen
Quick test for easy identification of the most correct setting parameters o Automations & object tiling
External axis controlled by software
Shutter control

Communication protocols: proprietary | Remote interface protocol

LENSES FOR LASER 1060-1064 nm	MARKING AREA	FOCAL DISTANCE (+- 2%)
F100	60X60 mm	120 mm
F163	110x110 mm	190 mm
F254	155x155 mm	290 mm
F330	200x200 mm	380 mm
F420	300x300 mm	460 mm
